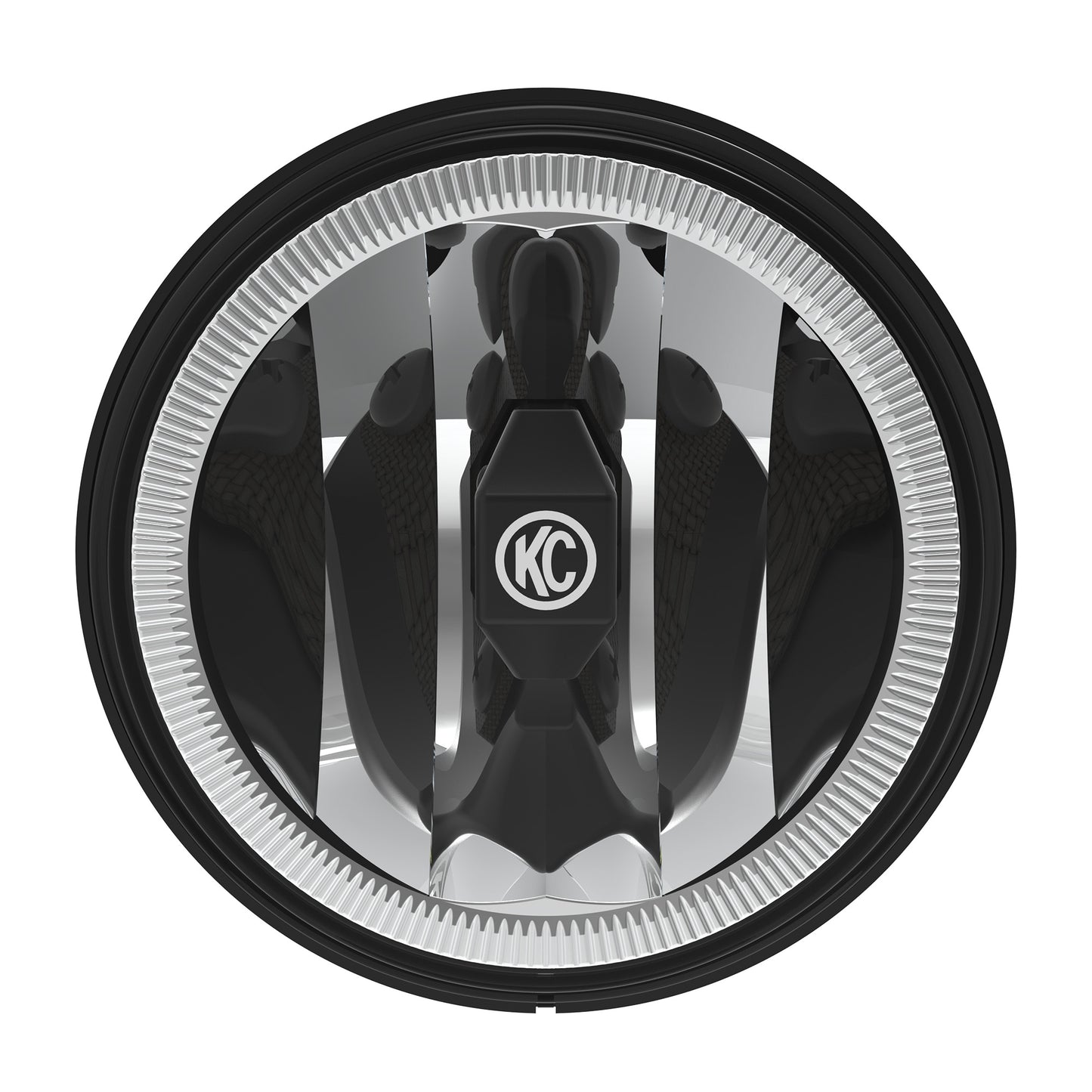

6" Gravity® LED G6 - Single Light - SAE/ECE - 20W Driving Beam

6" Gravity® LED G6 - Single Light - SAE/ECE - 20W Driving Beam

Regular price $119.99 USD
Regular price Sale price $119.99 USD
Sale Sold out
FEATURES
-20W Gravity® LED G6 Optical Inserts
-Aluminum Housing
-Hard Coated Polycarbonate Lens
-Driving Beam Pattern

LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Driving- 2,300 lm
-Compliance: Driving Beam meets SAE J581 & ECE-R112 Street Legal
-Lux @10 Meters: Driving- 1,130 lx
-Candela: Driving- 131,000 cd
-Beam Distance (Meters): Driving- 724m

SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.67A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 5.68" x H - 5.66" x D - 3.32"

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® G6 LED optical inserts deliver an incredible 1,310 lx @ 10m, with a Driving  Beam distance of 724 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES

Driving Beam- Greatly improve peripheral lighting with a wider beam pattern for increased road coverage while reducing glare.


UPGRADE YOUR HALOGENS TO LED
KC's Gravity® G6 LED optical inserts allow you to upgrade older KC 6" Halogen Daylighter and Pro-Sport housings, as well  custom 6" openings with the latest LED technology.STRENGTH & DURABILITY
With an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self contained LED light for maximum reliability and durability.
