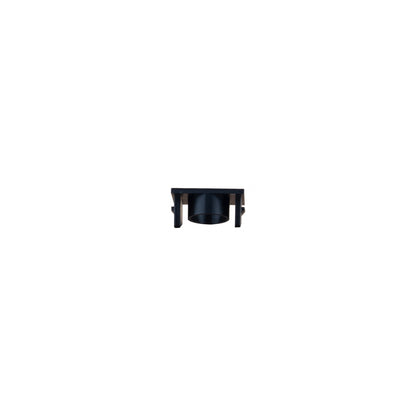

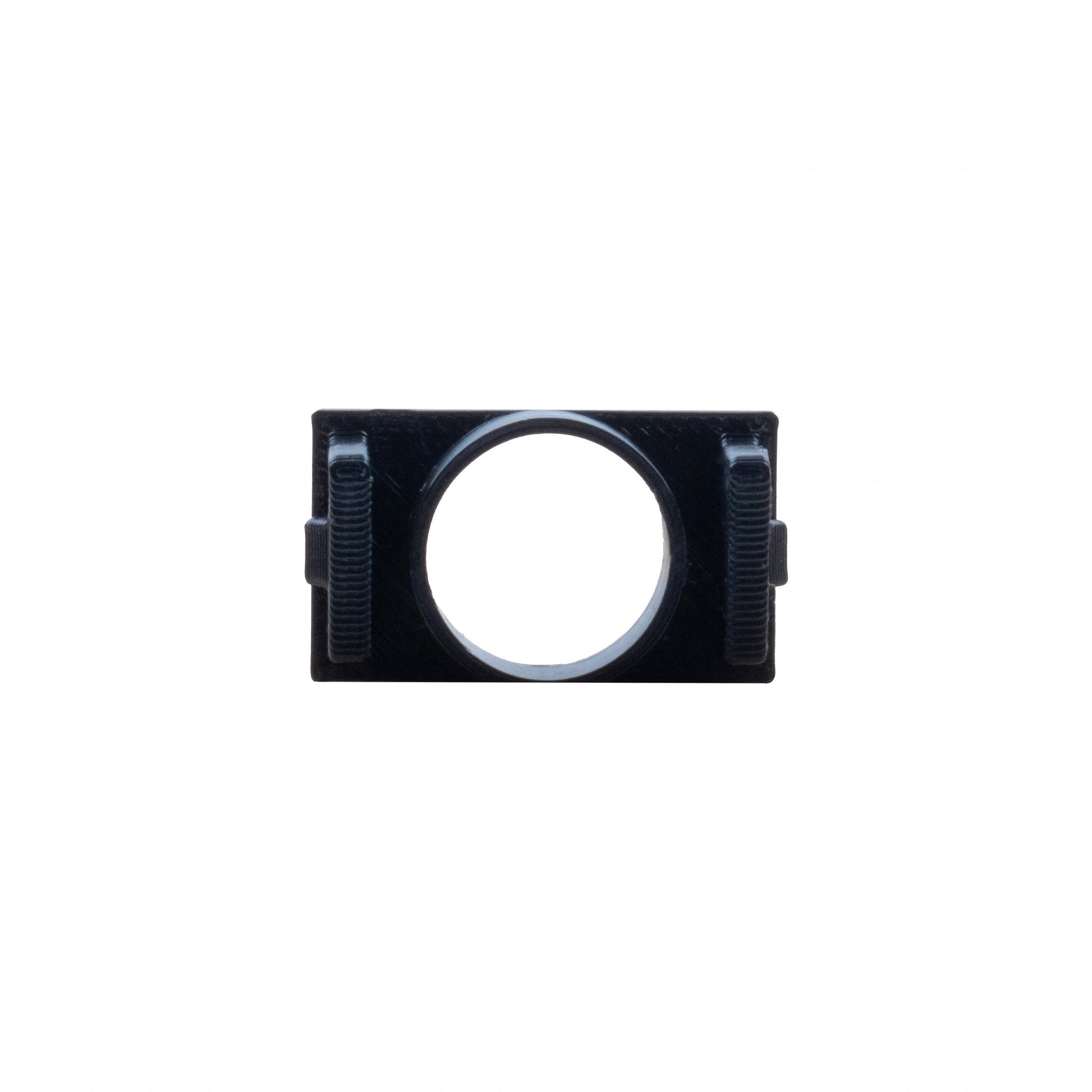

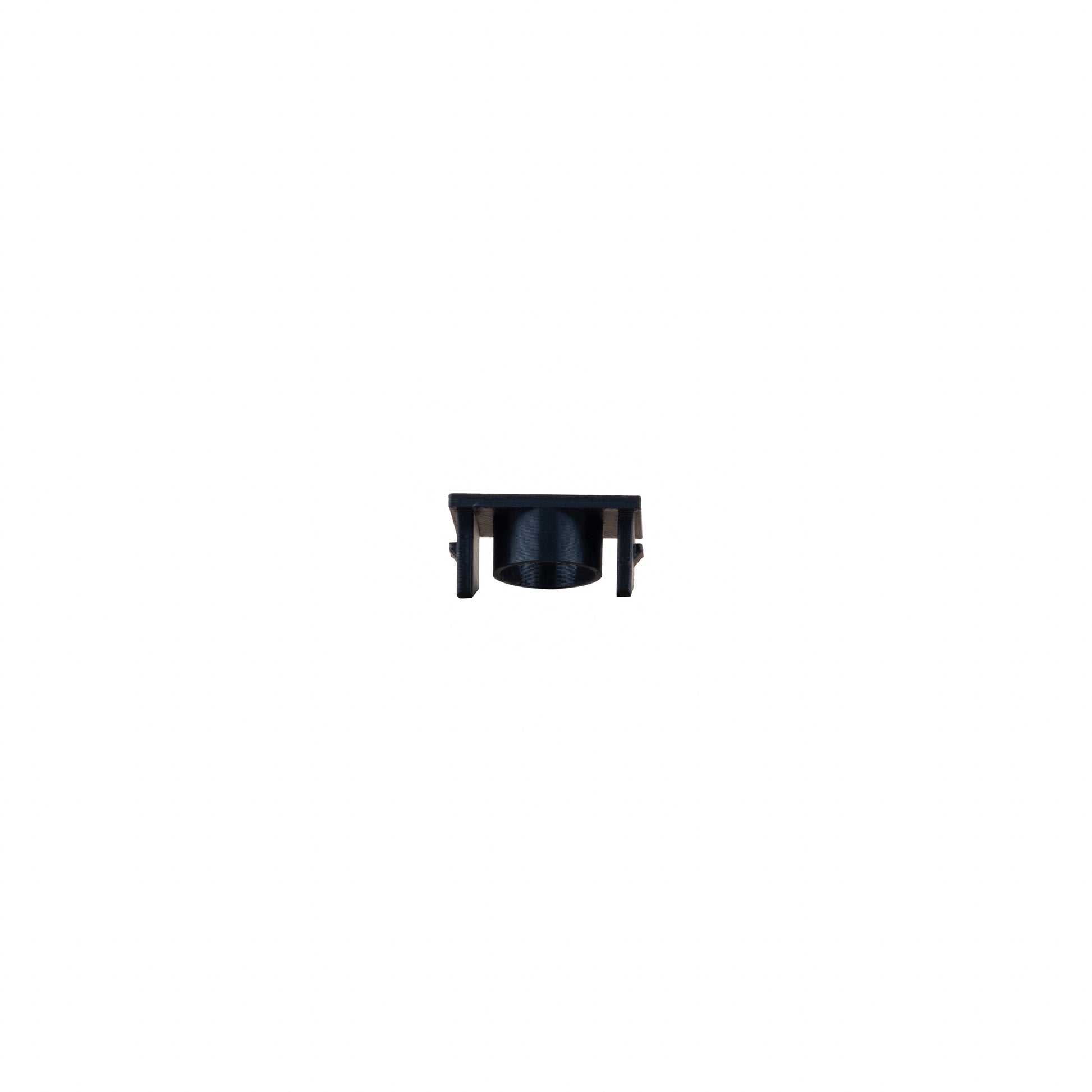

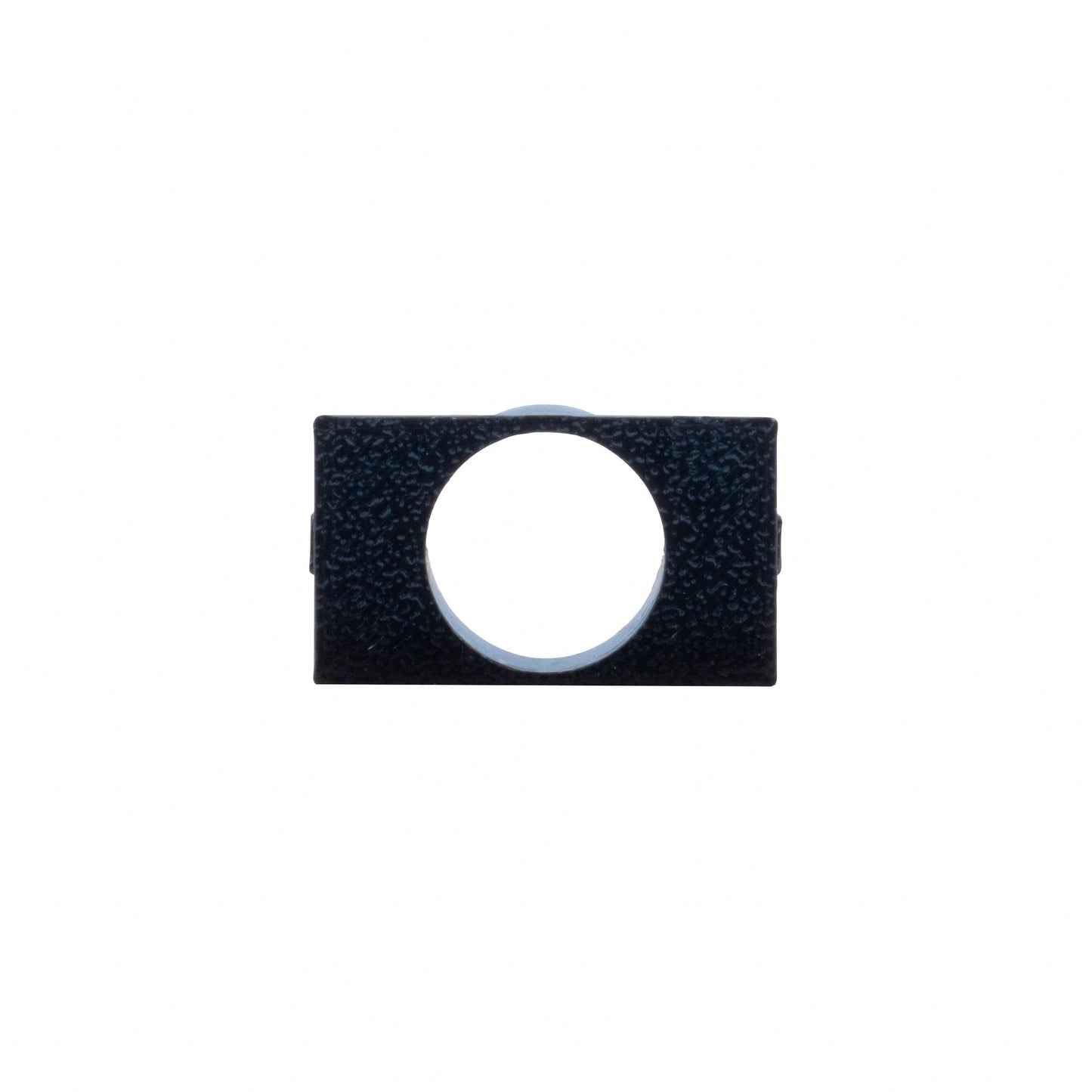

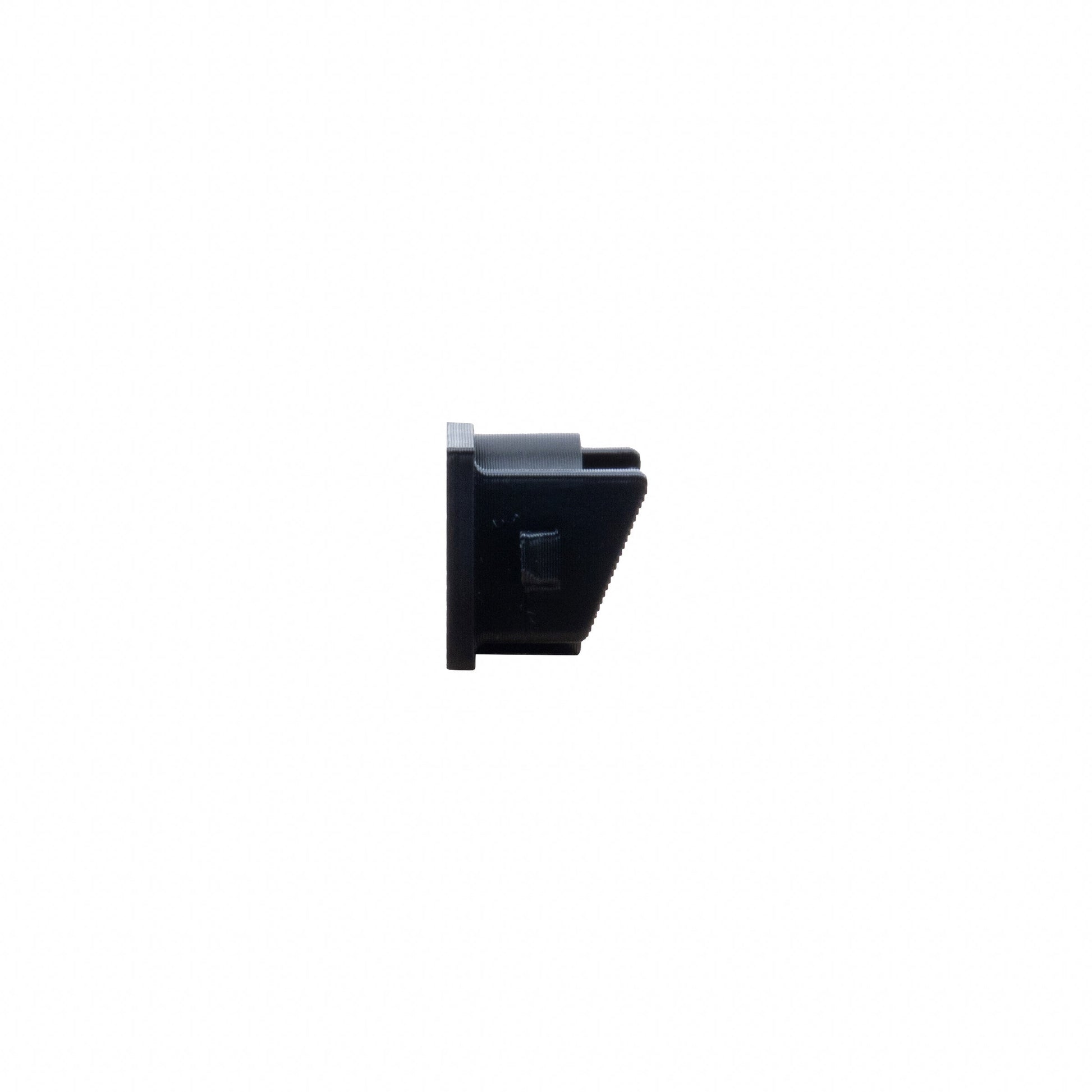

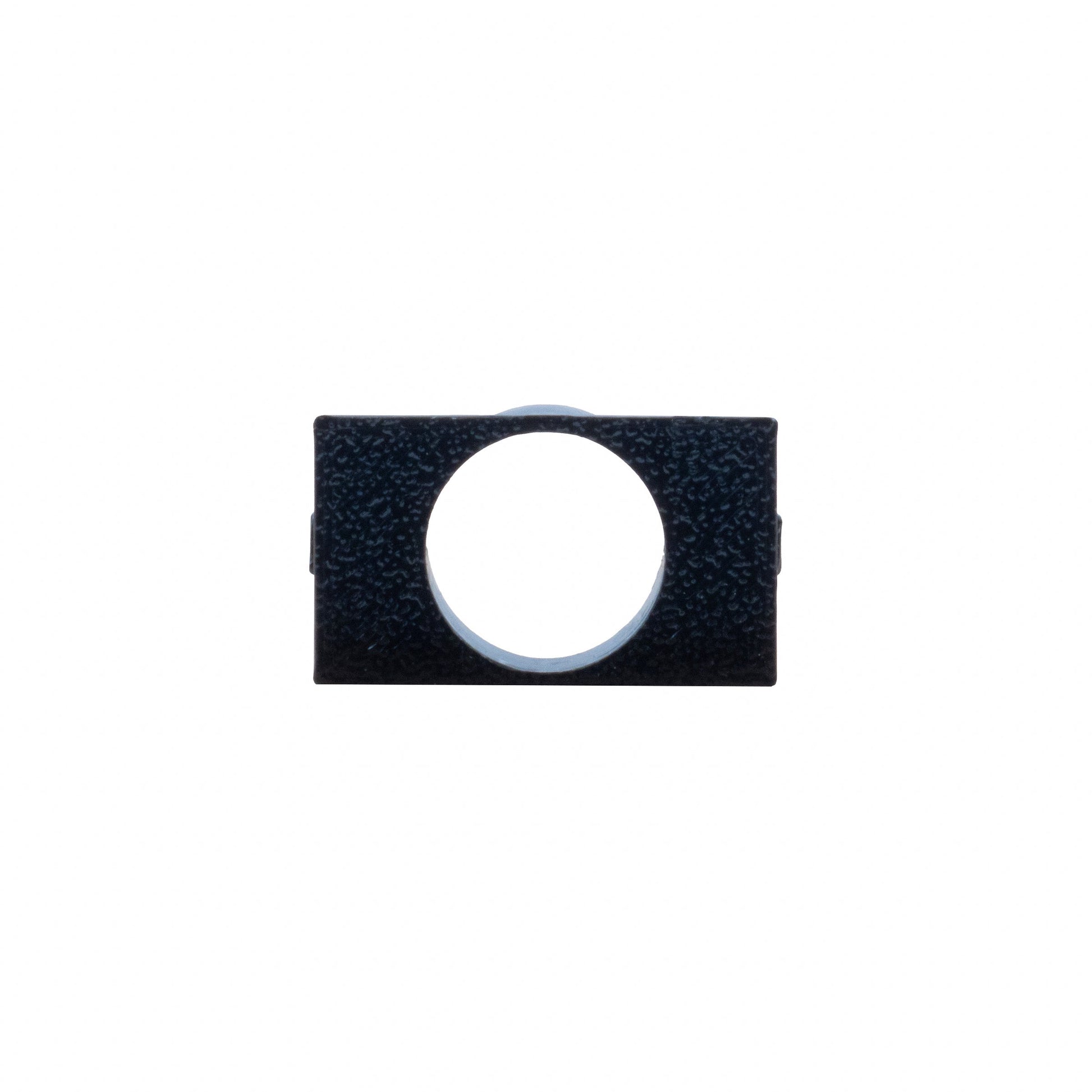

Alpine Microphone Mount for 2007–2021 Toyota Tundra / 2014 - 2022 Sequoia

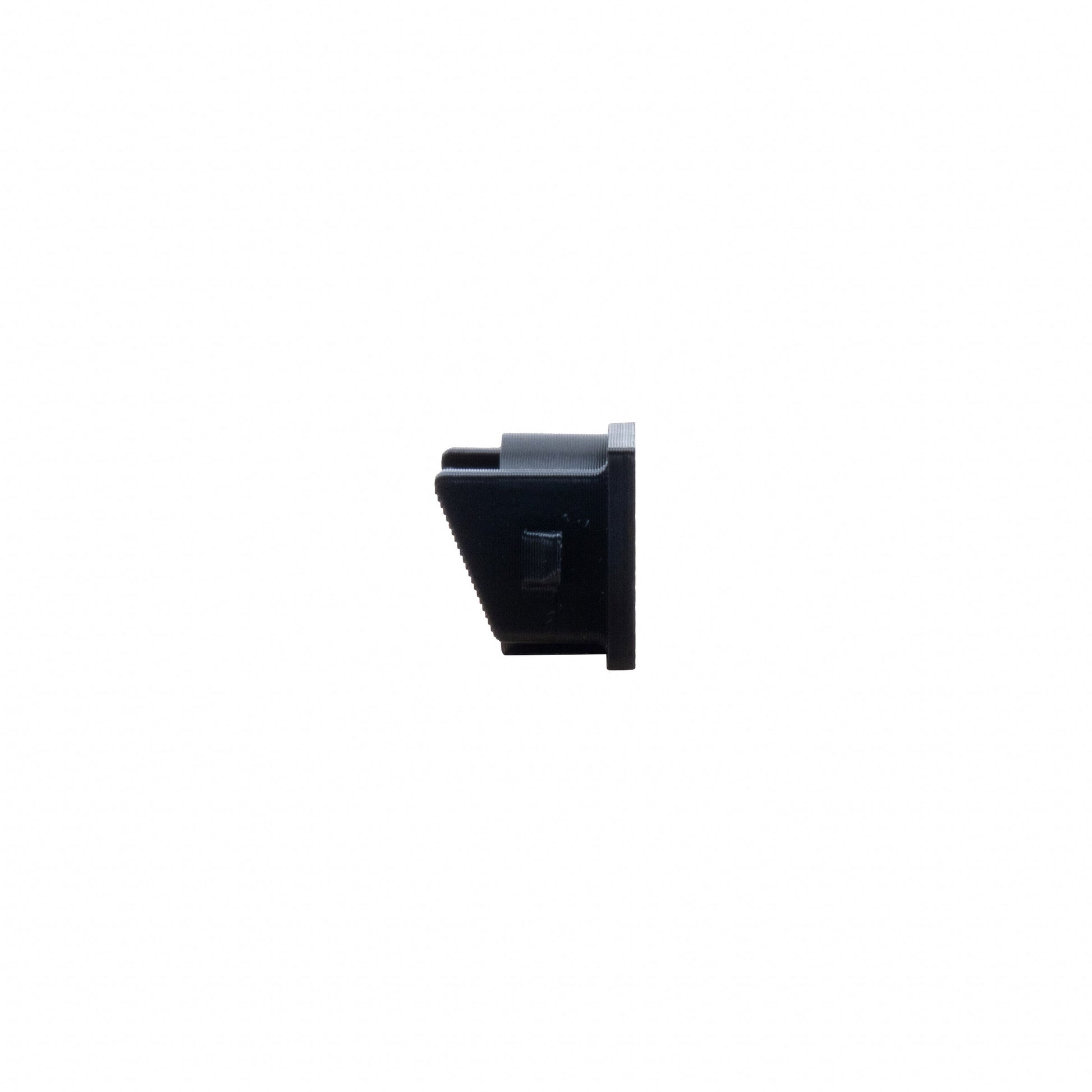

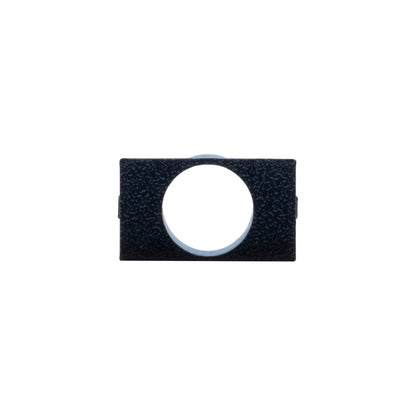

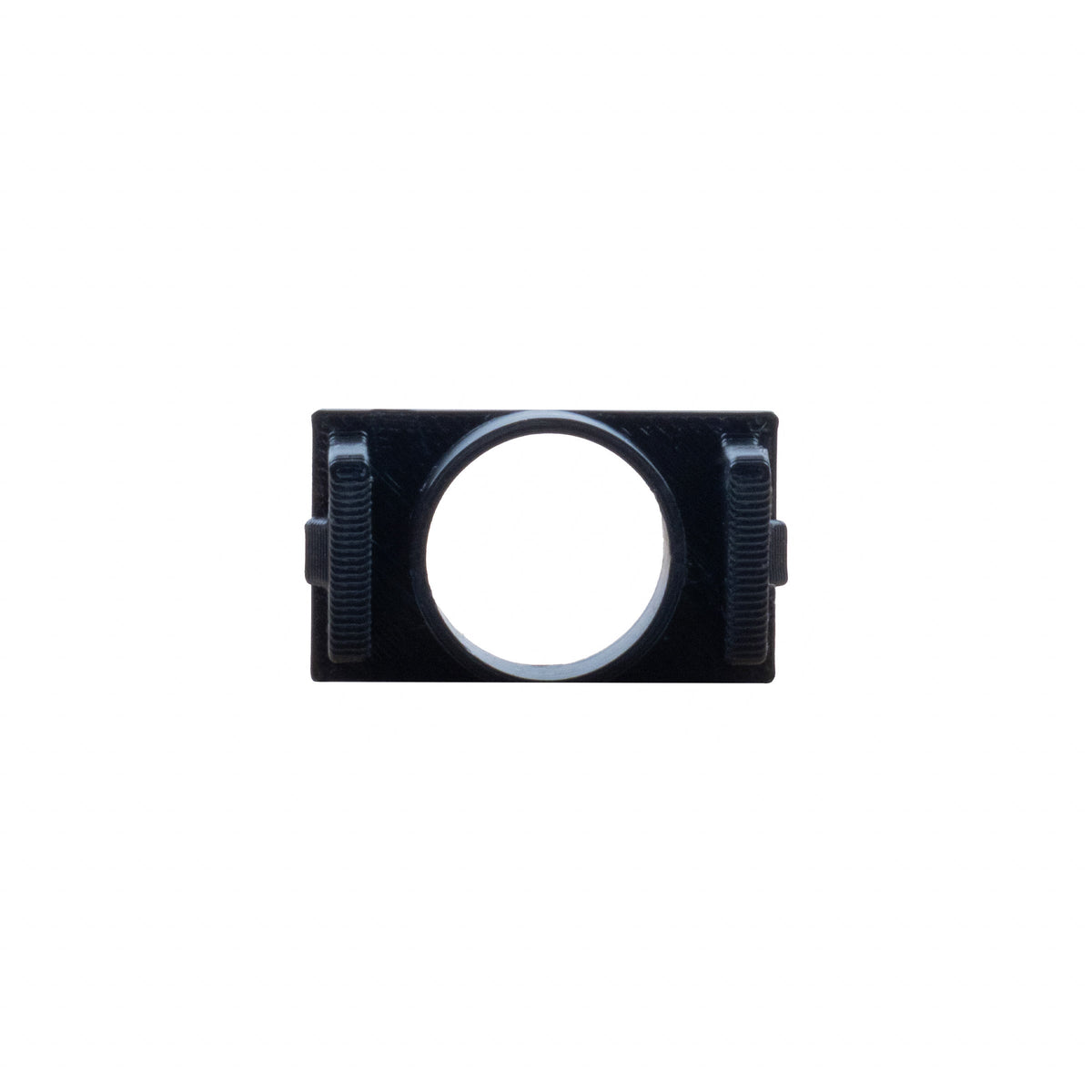

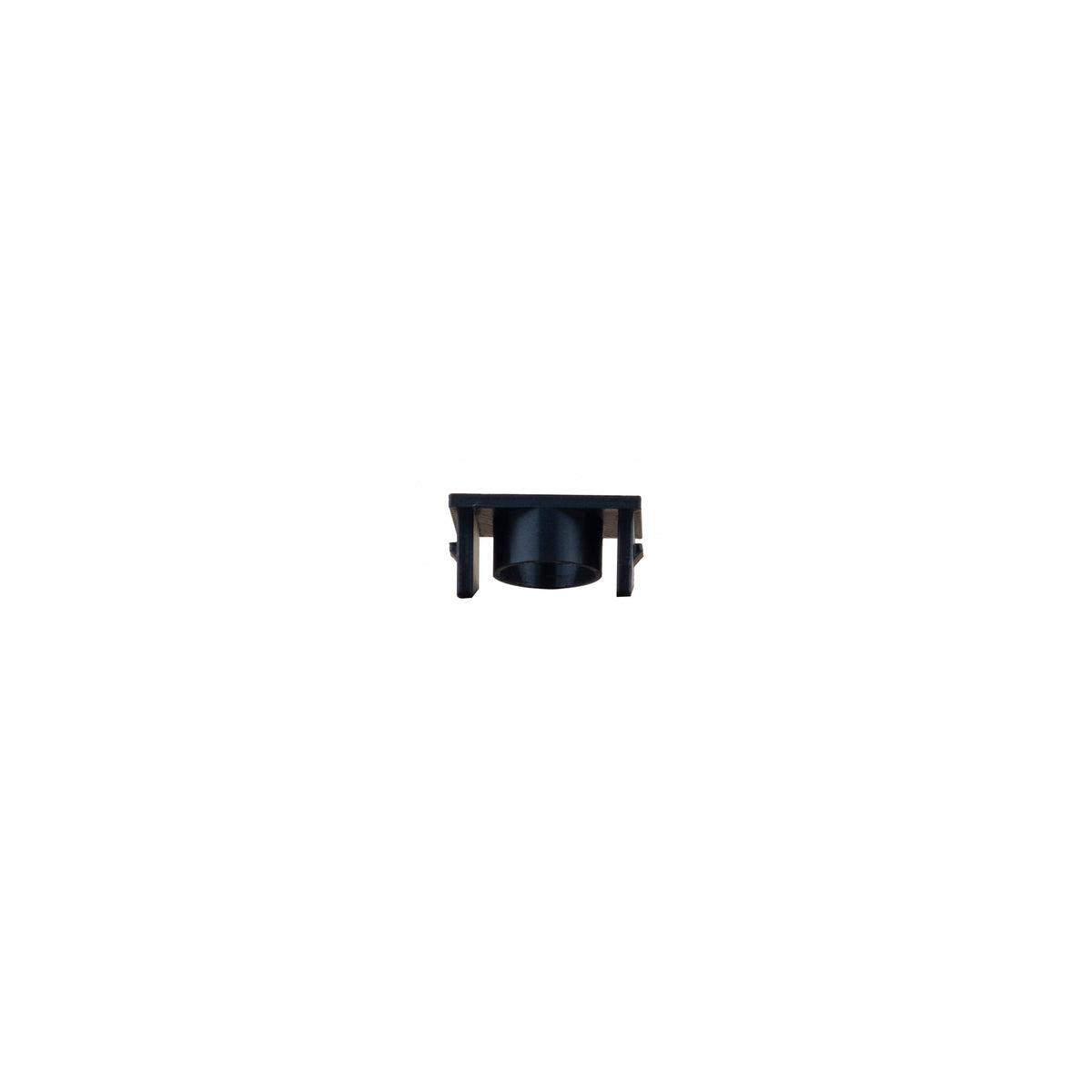

We're proud to offer a sleek, factory-style solution for mounting your Alpine aftermarket microphone directly into the OEM headliner console of your 2007–2021 Toyota Tundra & 2014 - 2022 Sequoia. This custom mount keeps your microphone neatly integrated while maintaining crystal-clear voice quality and functionality.

Installation Instructions

Remove the Headliner Console
Steps may vary depending on trim:

• If your truck has a sunglasses compartment, open it and remove the two T20 Torx screws.
• Use a plastic pry tool to remove the card holder panel; two more T20 screws will be underneath.
• For 2007–2013 Tundra, follow the video guide below.

• For 2014–2021 Tundra & 2014–2022 Sequoia, follow the appropriate video.

Disconnect Console Wiring

• Unplug the main wiring harness connector from the console.

Remove Foam Insert

• Locate and remove the foam insert from the factory microphone port.

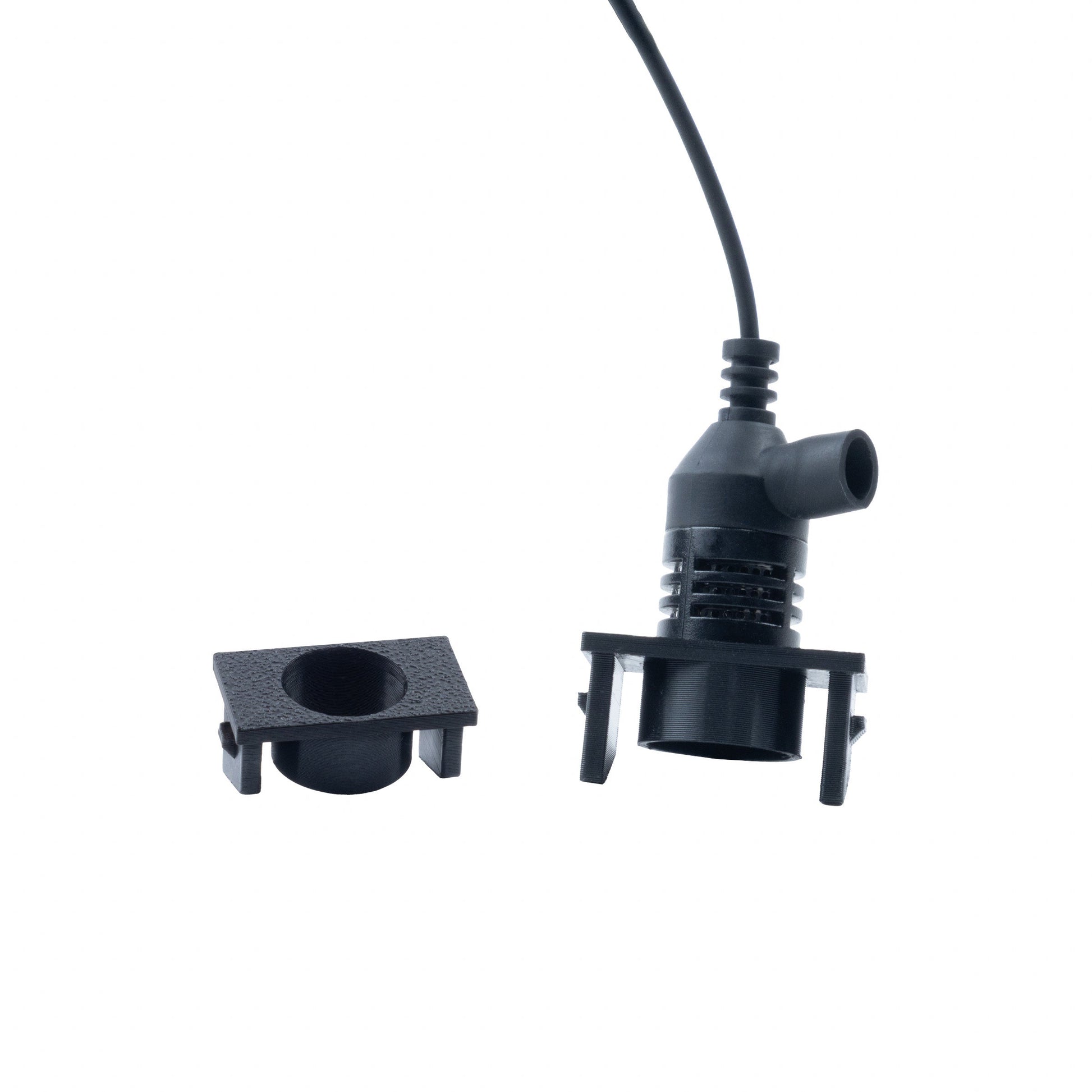

Install the Microphone into the Mount

• Push the rounded end of the microphone through the opening of the mount.
• Ensure the rounded end sits near the bottom of the center mount support.

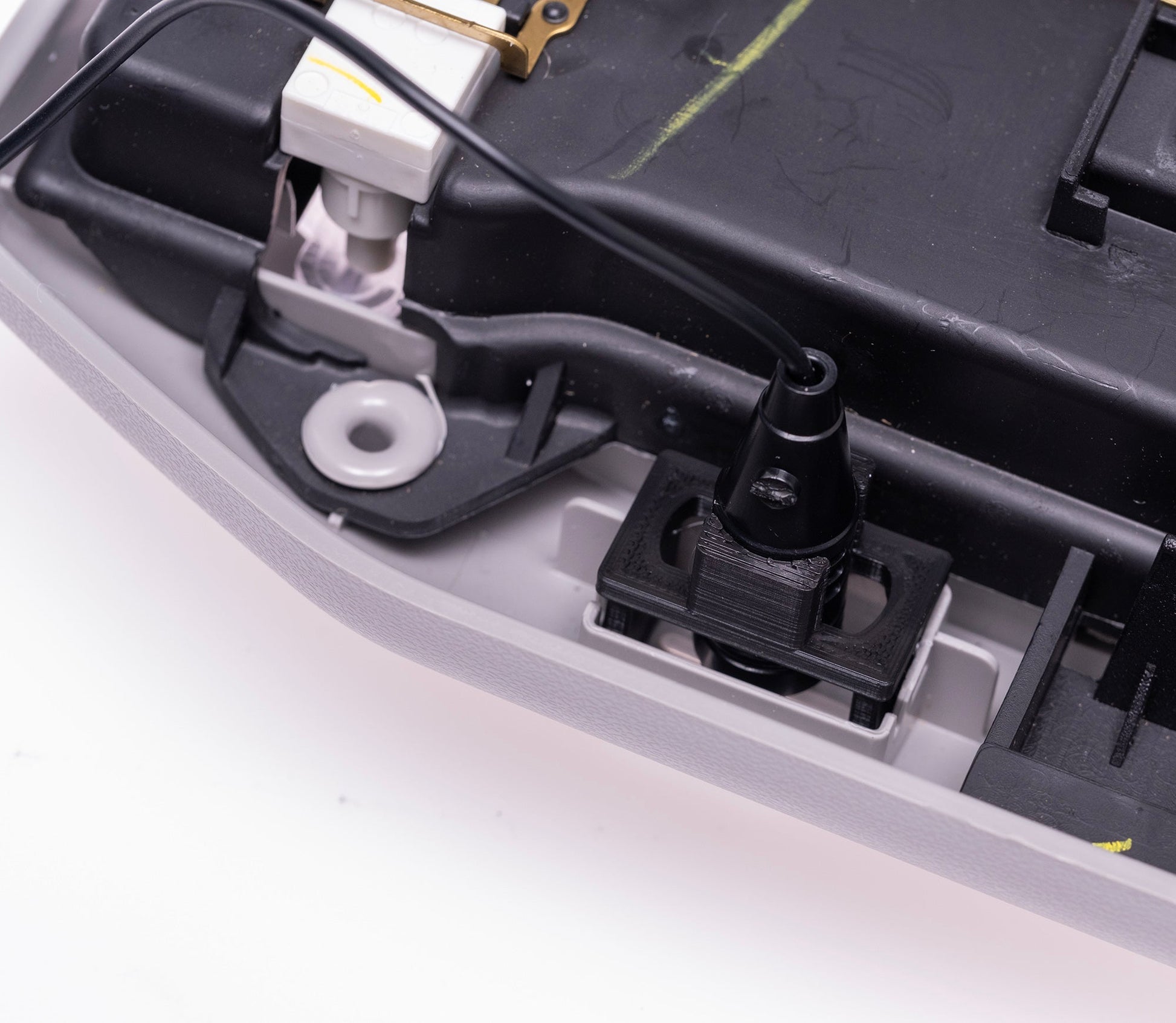

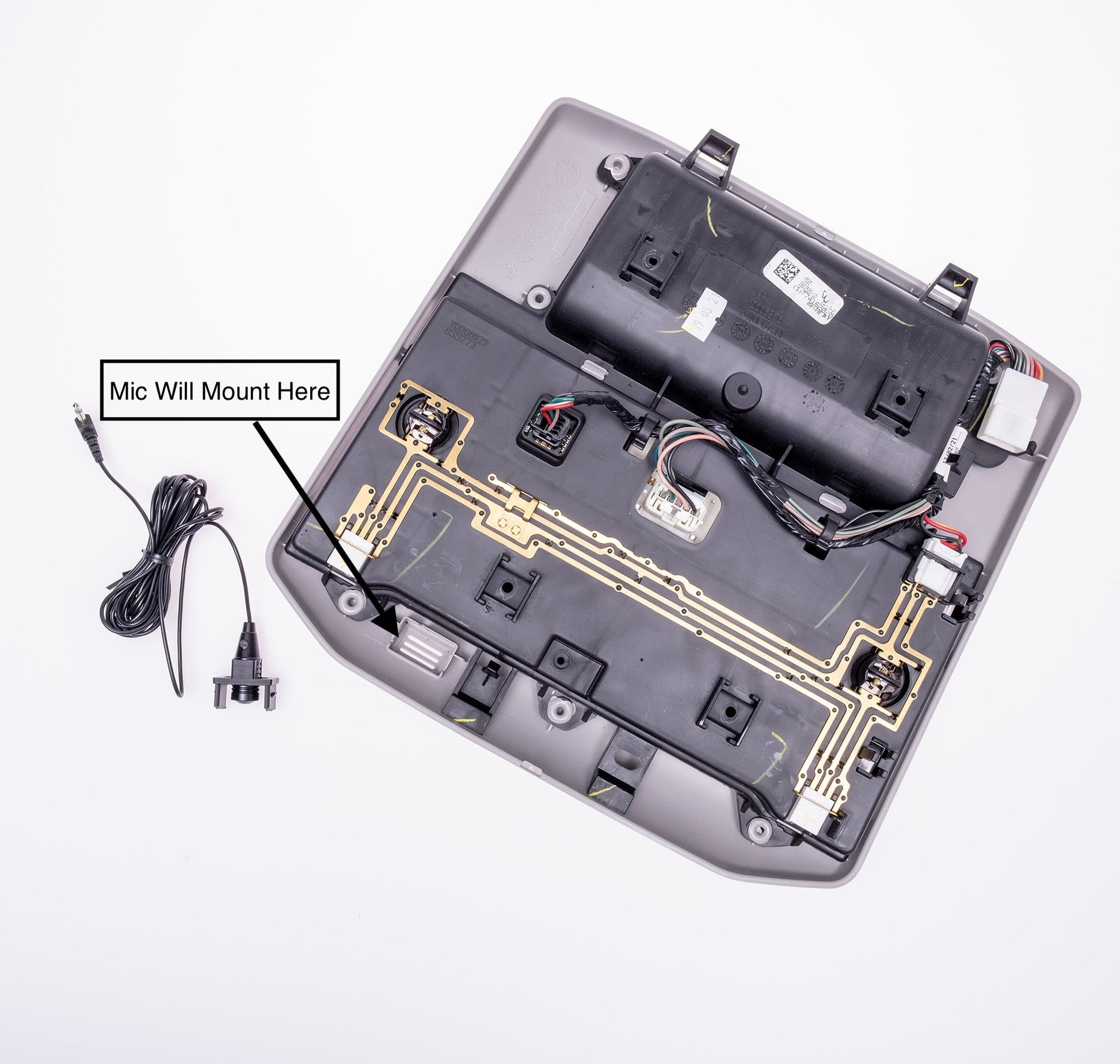

Insert the Mount into the Console

• With the microphone facing down and legs aligned, insert the mount into the headliner console until it clicks securely into place.

Route the Microphone Wire

• Run the wire from the headliner console toward the rearview mirror.
• Reinstall the console, pulling any slack toward the mirror.
• Continue routing the wire along the top of the windshield and down the driver-side A-pillar.
• Finish by running the wire under the dash to your Alpine head unit.
• Plug the 3.5mm jack into the appropriate mic port on the back of the radio chassis.

Test Functionality

• Power on the system and confirm the microphone is working properly.
