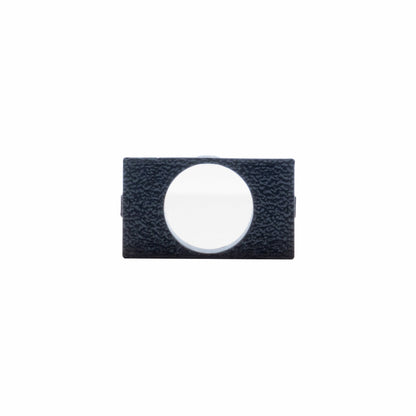

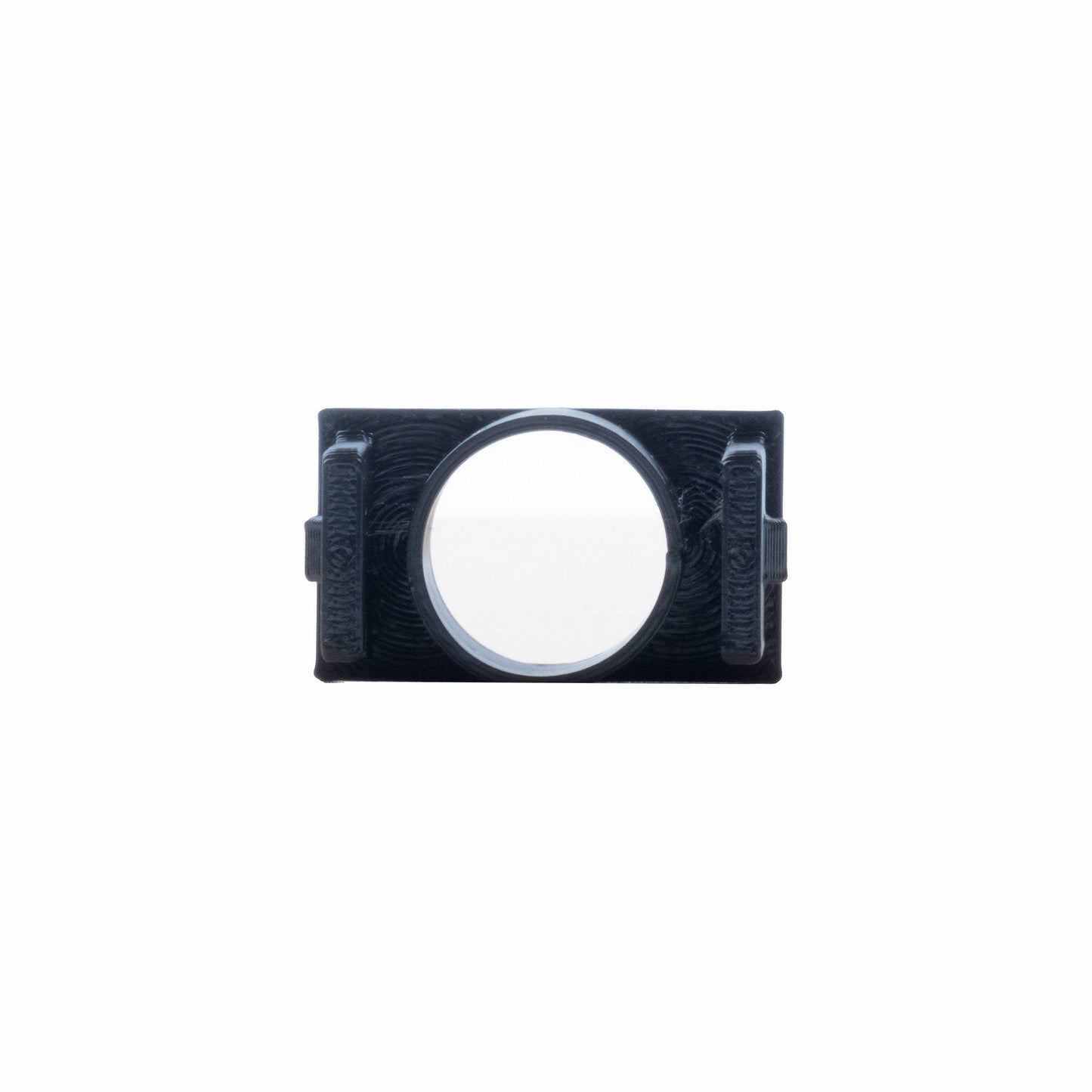

Alpine Microphone Mount | '10 - '24 4Runner

Remove the Headliner Console

• If equipped with a sunglasses compartment: Open it and remove the two screws.
• If equipped with terrain knobs (TRD Pro, Off-Road, etc.): Gently pull off the control panel to reveal the screws, then remove them.
• Pull the front of the console straight down to release the pressure clips.

Disconnect Console Wiring

• Unplug the wiring harness connector from the console.

Remove Factory Microphone

• Locate the black rectangular factory mic.
• Push it forward to release the dome light switch and cover.
• Unplug the mic and reinstall the dome light switch and cover.

Mount the Alpine Microphone

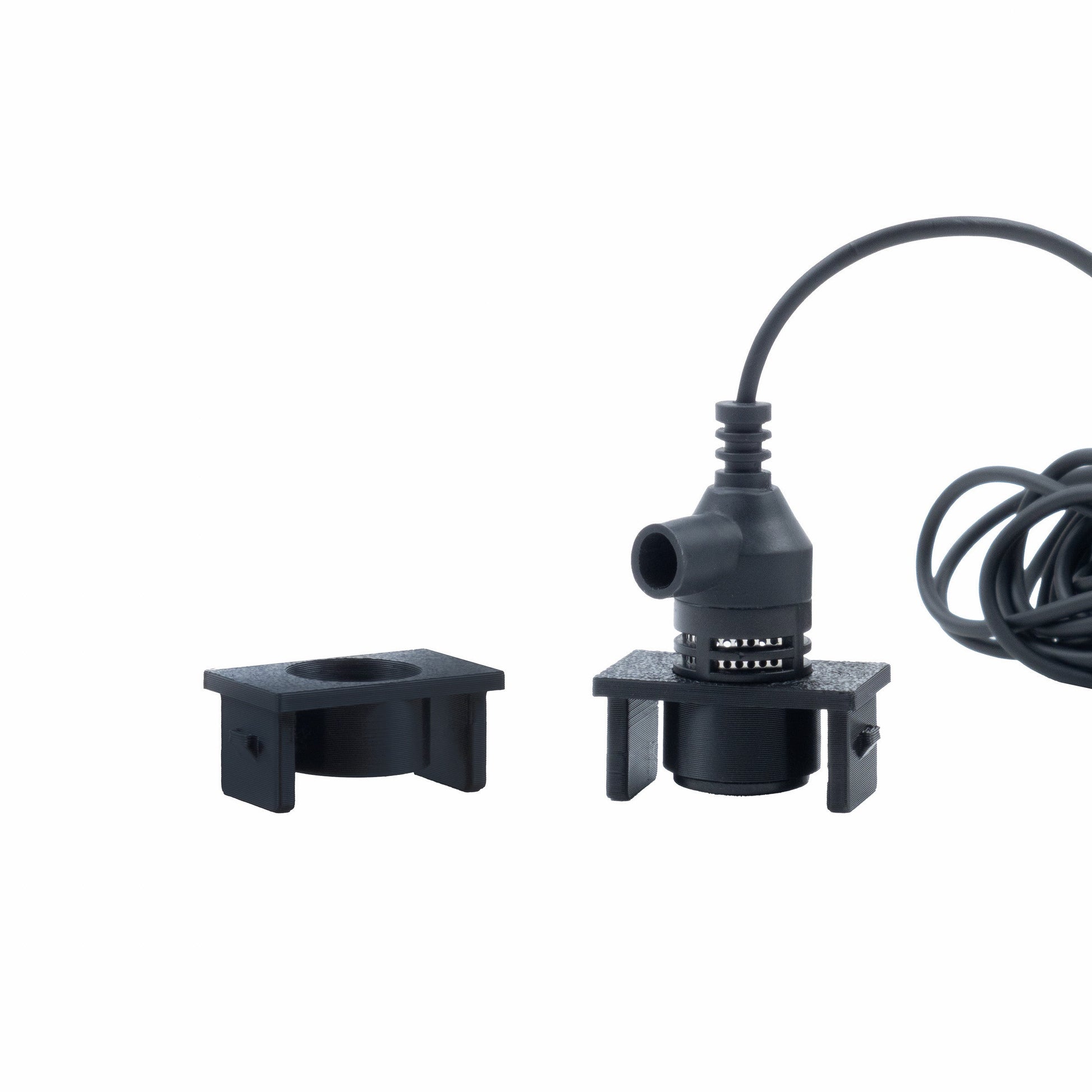

• Push the rounded end of the microphone through the opening of the mount.
• Ensure the rounded end sits near the bottom of the center mount support.

Install the Microphone Mount into Console

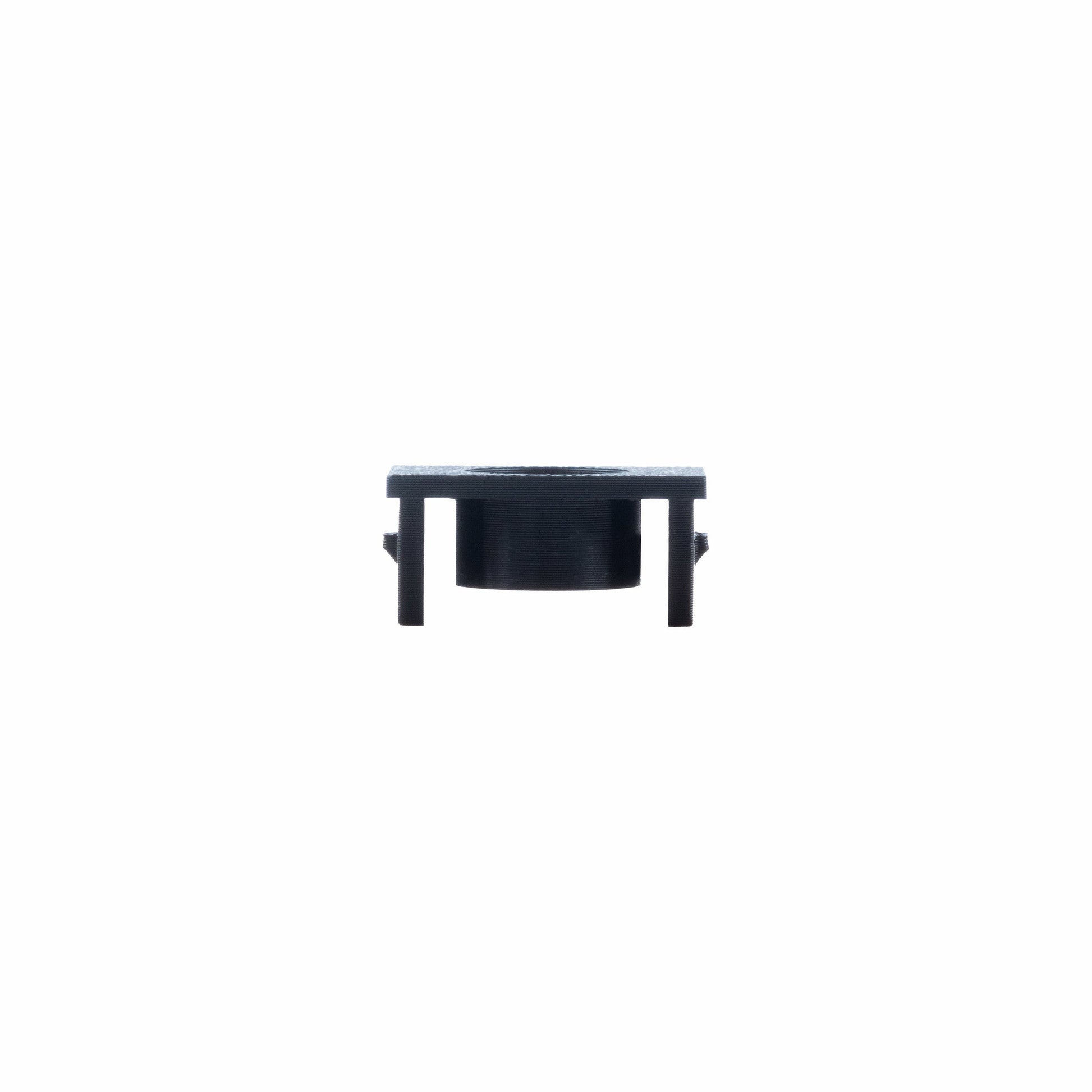

• Insert the mount into the headliner console with the legs facing down.
• Push until it clicks securely into place.

Route the Microphone Wire

• Run the wire from the headliner console toward the rearview mirror.
• Reinstall the console while pulling any slack toward the mirror.
• Continue routing the wire along the top of the windshield toward the driver’s side A-pillar.
• Tuck the wire behind the A-pillar cover and run it down to the driver’s footwell.
• Route the wire under the dash to the back of your Sony bundle.
• Plug the 3.5mm jack into the red microphone port on the Sony radio chassis.

Test Functionality

• Power on the system and confirm the microphone is functioning properly.
